FWH-300
Unmanned Helicopter

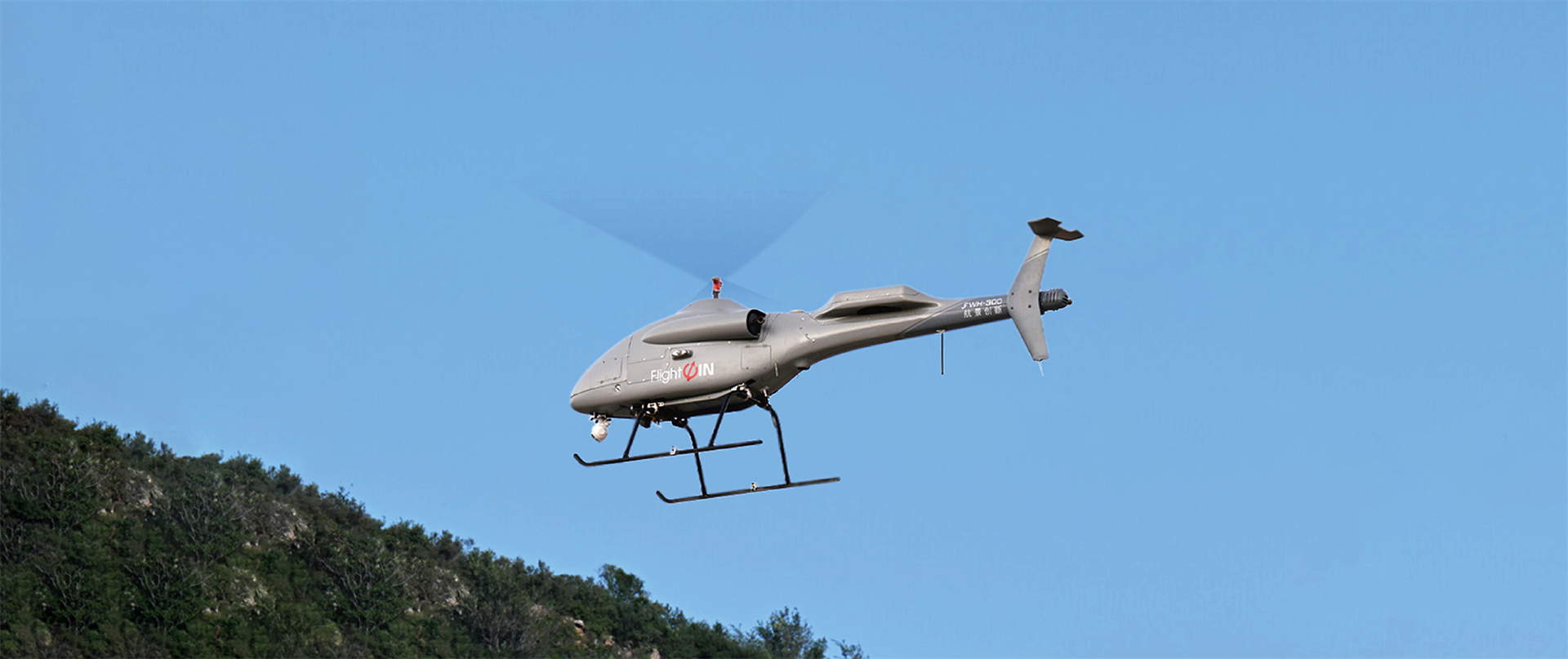

FWH-300
FWH-300 unmanned helicopter is a 200kg-class single-rotor unmanned helicopter with tail rotor. It uses advanced aero engine, and has large payload capacity, long endurance, fast flight speed, and strong wind resistance characteristics. It adopts redundant flight control, navigation and TT&C system, and can be used on the sea, in the mountains, forests, and deserts to carry out inspection patrol, mapping, and communication relay tasks.
• Intelligent stability system
• Strong maneuverability, good controllability, safe and reliable flight in narrow spaces or complex obstacle environments;
• Lightweight structure
• Small size, light weight, easy to transport, can be transported by a small van;
• Multi-sensor integration
• Diverse mission payloads, capable of integrating electro-optical pods, loudspeakers, searchlights, and other mission payloads;
• Wide-ranging applications
• Widely applicable, commonly used in inspection and patrol, and forest firefighting.
Specification
| Length | 3.9m | Max Flight Speed | 120km/h |
| Width | 10m | Max Takeoff & Landing Altitude | 2500m |
| Height | 1.5m | Service Ceiling | 3000m |
| MTOW | 220kg | Endurance | 5h |
| Max Payload | 50kg | Wind Resistance | Level 6 (takeoff & landing), Level 7 (in flight) |
| Cruise Speed | (80-90)km/h | Rain Resistance | Medium Rain |
