FWA-35

VTOL UAV

FWA-35

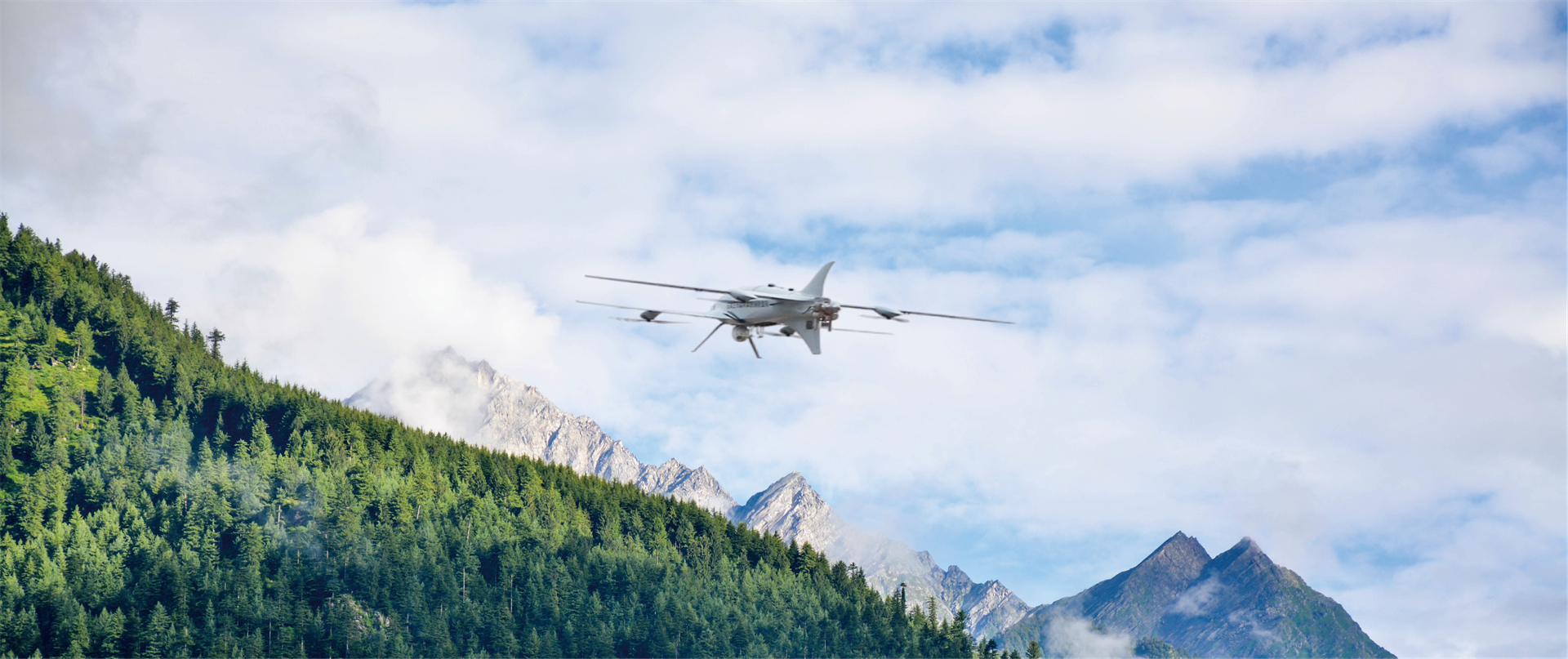

The FWA-35 VTOL UAV is a 50kg-class vertical takeoff and landing fixed-wing UAV, which is available in two versions: hybrid/pure electric power system. It supports a variety of payload equipment such as photoelectric pods,communication relay device, rapid 3D modeling payload, high-definition orthophoto cameras, and personnel search and rescue payloads, etc. The pure electric version can autonomously carry out full-process missions such as forest fire prevention patrol, disaster inspection, UAV communication relay support, border and coastal reconnaissance,pipeline inspection and maritime reconnaissance etc. under unattended conditions.

• Rapid VTOL

• Vertical takeoff and landing, simple site requirements, efficient cruising, capable of performing long-range inspection and patrol tasks;

• Aerodynamic optimization

• Tandem-wing configuration with higher aerodynamic efficiency, providing longer endurance flight capability;

• Long-endurance battery life

• Fully modular design, enabling rapid deployment and recovery, facilitating efficient operations;

• Wide-ranging applications

• Widely applicable, commonly used in road network monitoring, petrochemical pipeline inspection, border patrol, and forest fire surveillance etc.

Specification

Length2mCruise Speed90km/h
Wingspan3.8mMax Flight Speed150km/h
Height0.7mService Ceiling5500m
Package Size(2.2×0.9×7)mEndurance10h
MTOW35kgWind ResistanceLevel 5 (takeoff & landing), Level 6 (in flight)
Max Payload5kgRain ResistanceMedium Rain
