VTOL UAV

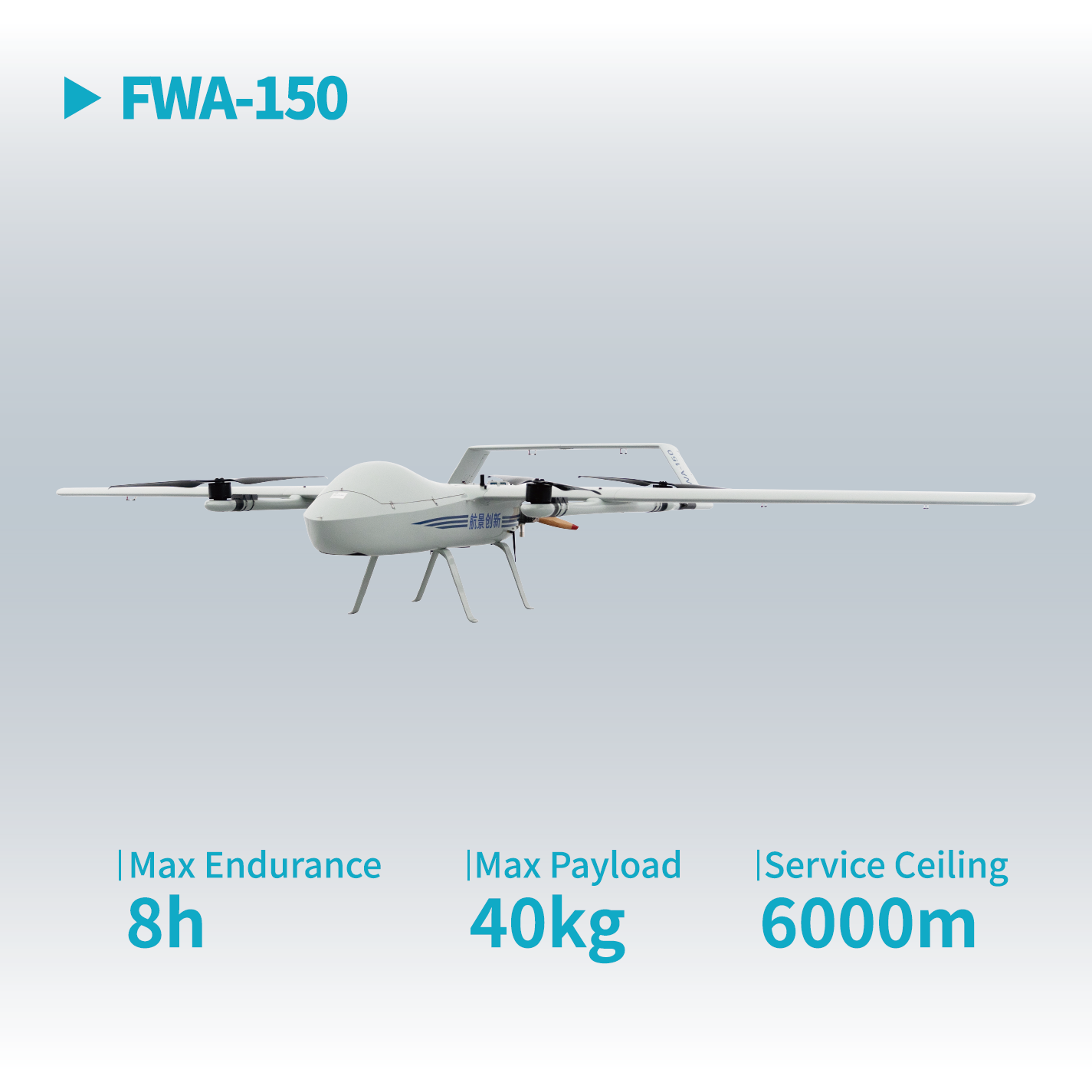

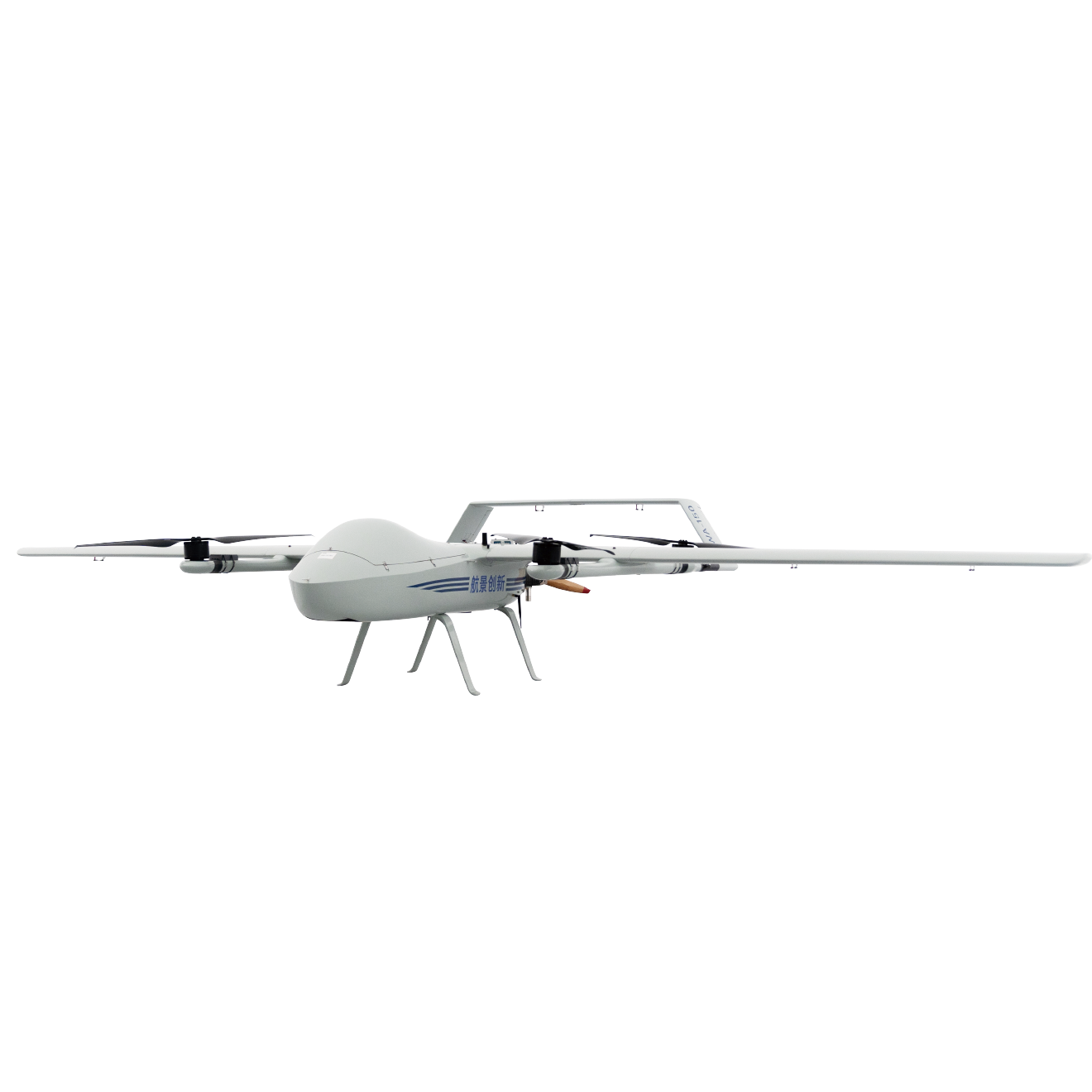

FWA-150
The FWA-150 VTOL UAV is a 150kg-class vertical takeoff and landing fixed-wing UAV, which uses hybrid
power system. It has large payload space, long endurance time, high environmental adaptability and
high reliability. It can carry airborne satellite communication system and multiple mission payload
devices at the same time, to perform long-distance/beyond-visual-range missions in emergency
communication, personnel rescue, cargo delivery and forest fire patrol & extinguishing etc.
• Rapid VTOL
• Vertical takeoff and landing, minimal site requirements, efficient cruising, and long-range inspection and patrol capabilities;
• Adaptive Signal Filtering
• Supports rapid integration of multiple payloads, such as HD cameras, infrared thermal imagers, LiDAR, and communication devices;
• Multi-scenario Deployment
• Autonomous takeoff and landing, large-area autonomous route flight, with intelligent target recognition, positioning, and tracking;
• Wide-ranging applications
• Wide range of applications, including border and coastal patrol, large-scale inspection and surveying, maritime search and rescue, and more.
Specification
| Length | 3.1m | Cruise Speed | 110km/h |
| Wingspan | 6m | Max Flight Speed | 150km/h |
| Height | 0.9m | Service Ceiling | 6000m |
| MTOW | 140kg | Endurance | 8h |
| Max Payload | 40kg | Wind Resistance | Level 6 (takeoff & landing), Level 7 (in flight) |
| Max Payload | 30kg | Rain Resistance | Medium Rain |
