VTOL UAV

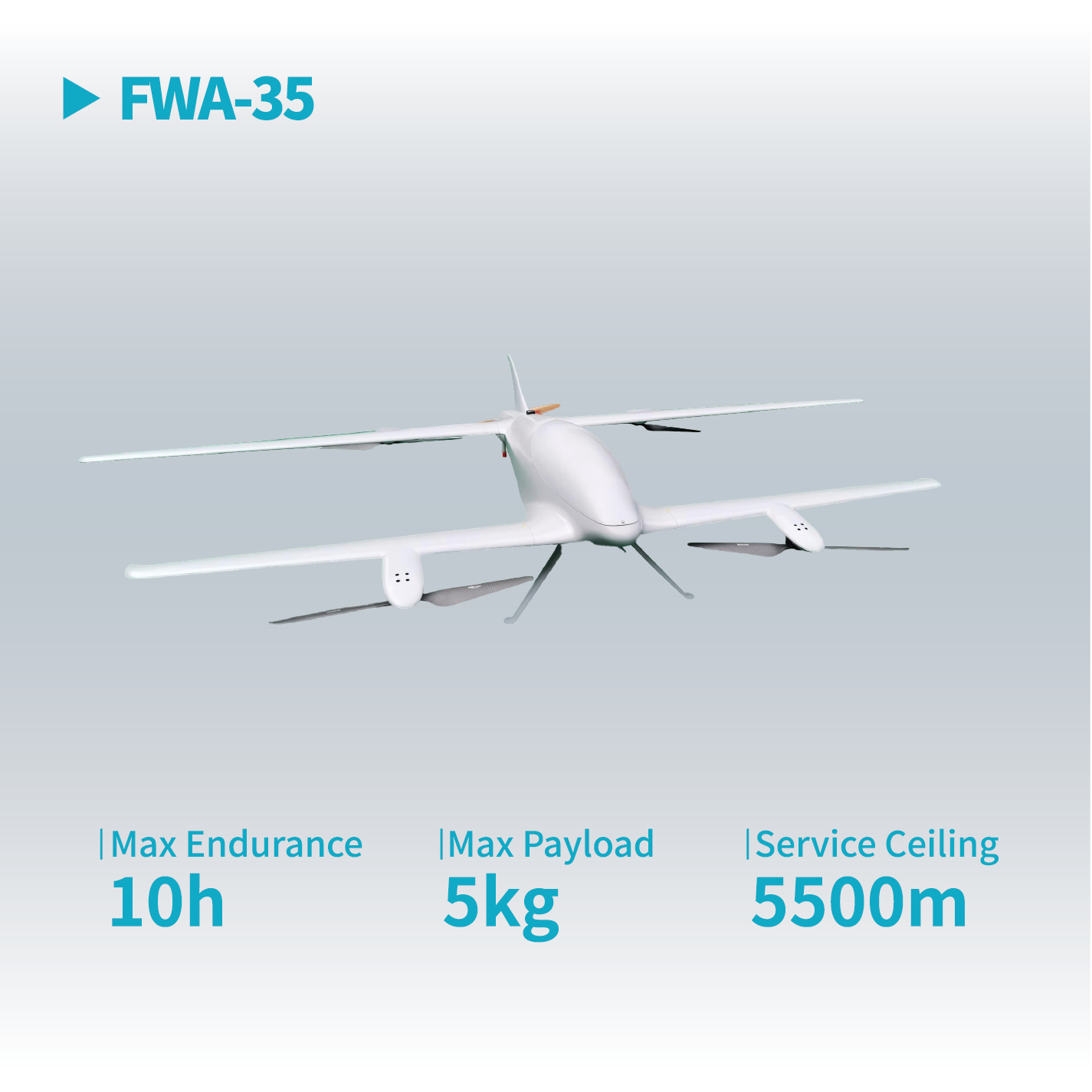

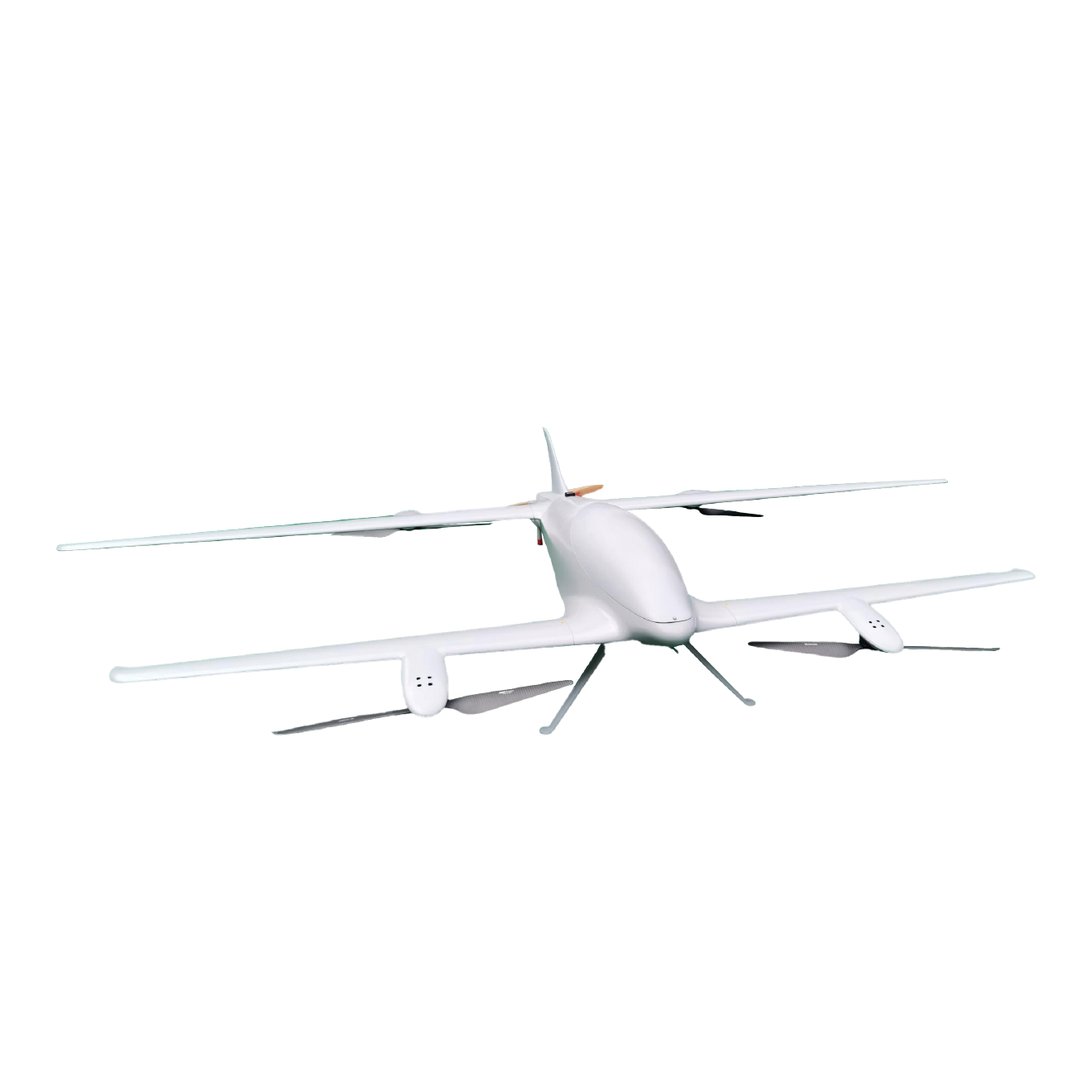

FWA-35
The FWA-35 VTOL UAV is a 50kg-class vertical takeoff and landing fixed-wing UAV, which is available in
two
versions: hybrid/pure electric power system. It supports a variety of payload equipment such as
photoelectric pods,communication relay device, rapid 3D modeling payload, high-definition orthophoto
cameras, and personnel search and rescue payloads, etc. The pure electric version can autonomously
carry
out full-process missions such as forest fire prevention patrol, disaster inspection, UAV
communication
relay support, border and coastal reconnaissance,pipeline inspection and maritime reconnaissance
etc.
under unattended conditions.
• Rapid VTOL
• Vertical takeoff and landing, simple site requirements, efficient cruising, capable of performing long-range inspection and patrol tasks;
• Aerodynamic optimization
• Tandem-wing configuration with higher aerodynamic efficiency, providing longer endurance flight capability;
• Long-endurance battery life
• Fully modular design, enabling rapid deployment and recovery, facilitating efficient operations;
• Wide-ranging applications
• Widely applicable, commonly used in road network monitoring, petrochemical pipeline inspection, border patrol, and forest fire surveillance etc.
Specification
| Length | 2m | Cruise Speed | 90km/h |
| Wingspan | 3.8m | Max Flight Speed | 150km/h |
| Height | 0.7m | Service Ceiling | 5500m |
| Package Size | （2.2×0.9×7）m | Endurance | 10h |
| MTOW | 35kg | Wind Resistance | Level 5 (takeoff & landing), Level 6 (in flight) |
| Max Payload | 5kg | Rain Resistance | Medium Rain |
