VTOL UAV
FWA-95

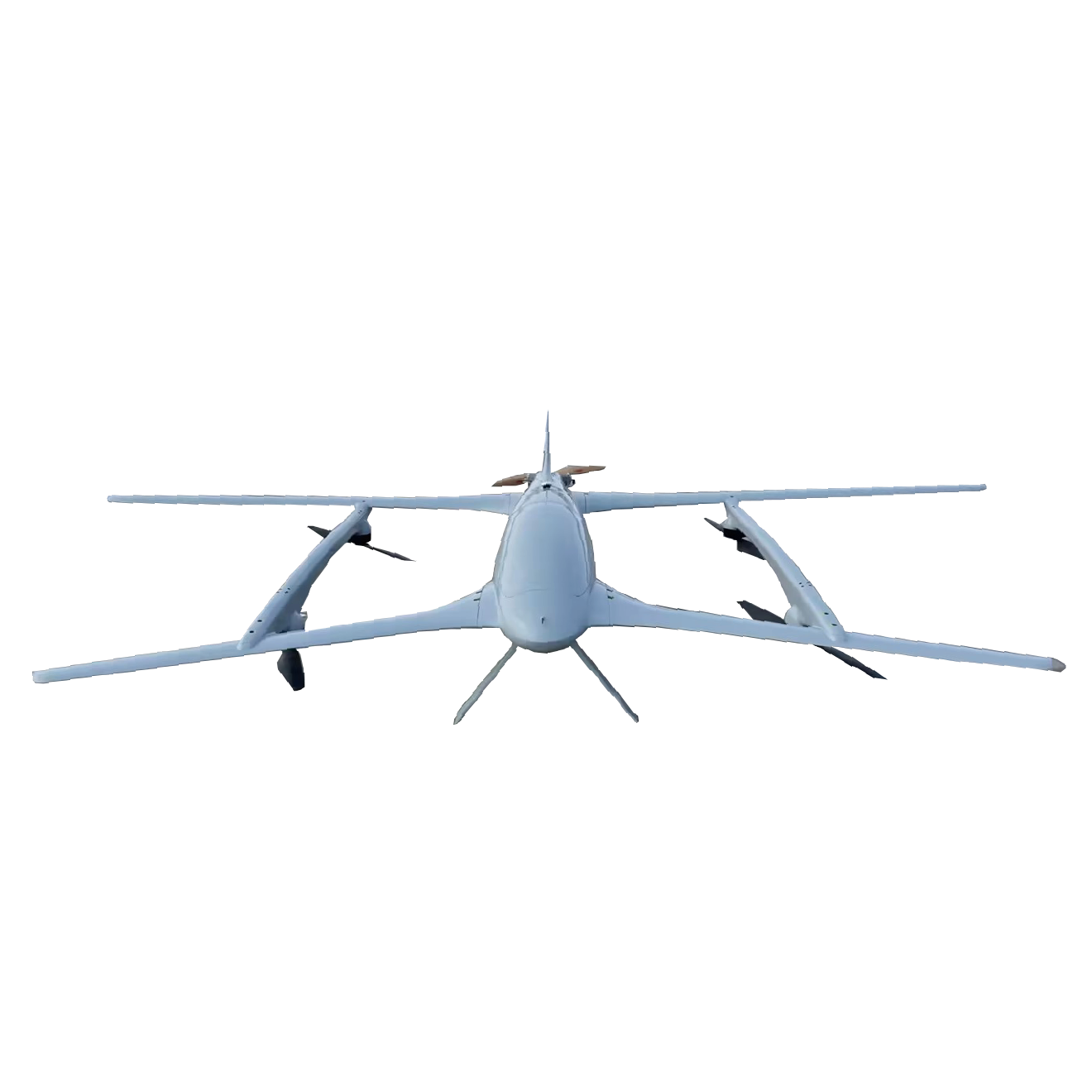

The FWA-95 VTOL UAV is a 100kg-class vertical takeoff and landing fixed-wing UAV, which uses hybrid
power system, with heavy oil engine optional. It has long endurance time, and supports a variety of
payload equipment such as photoelectric pods, communication relay equipment, rapid 3D modeling
payload, high-definition orthophoto cameras, and personnel search and rescue payloads. It can perform
emergency communication and emergency mapping missions as well as multiple shipborne missions.
• Rapid VTOL
• Vertical takeoff and landing, simple site requirements, efficient cruising, and long-range inspection and patrol missions;
• Real-time load fusion
• Supports rapid integration of multiple payloads, such as HD cameras, infrared thermal imagers, LiDAR, and communication equipment;
• AI-driven automation
• Automated takeoff and landing, large-area autonomous route flight, with intelligent target recognition, positioning, and tracking capabilities;
• Wide-ranging applications
• Wide range of applications, commonly used for border and coastal patrols, large-scale inspection and mapping, maritime rescue and search operations.

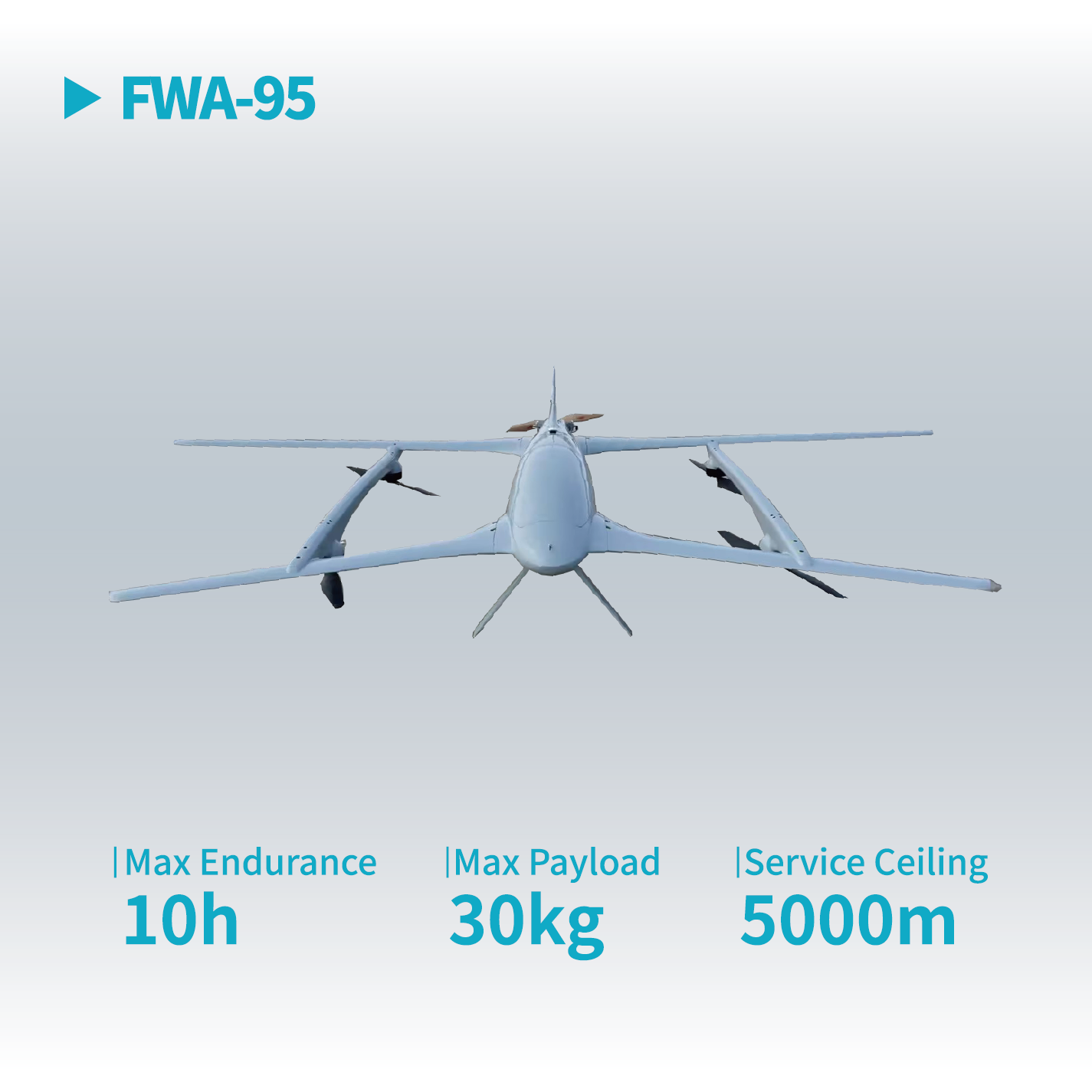

Specification
| Length | 3m | Cruise Speed | 100km/h |
| Wingspan | 5.1m | Max Flight Speed | 160km/h |
| Height | 1m | Service Ceiling | 5000m |
| Package Size | （3.1×0.8×1）m | Endurance | 10h |
| MTOW | 100kg | Wind Resistance | Level 5 (takeoff & landing), Level 6 (in flight) |
| Max Payload | 30kg | Rain Resistance | Medium Rain |
