Unmanned Helicopter
FWH-1200

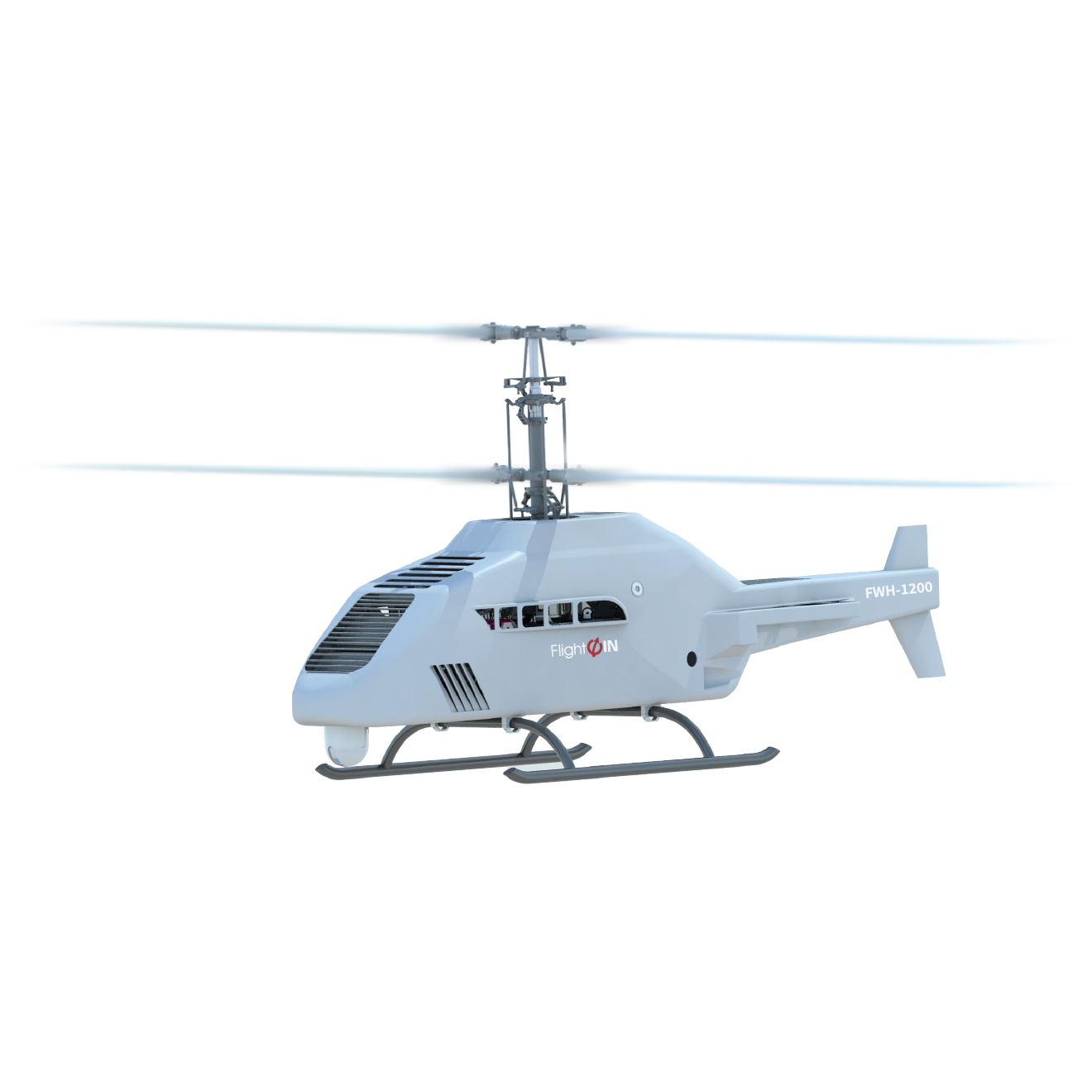

The FWH-1200 is a 1200kg-class large coaxial twin-rotor helicopter. This model adopts a coaxial
twin-rotor aerodynamic configuration, characterized by a compact structure and high payload ratio; it
uses two turbocharged engines installed oppositely in the front and rear, ensuring a small size
while providing advantages such as heavy payload capacity and long endurance.
The FWH-1200 uses the same flight control system as the FWH-650, which has already been maturely applied in complex environments such as plateaus, islands, and deserts, and is characterized by maturity and stability.
The FWH-1200 uses the same flight control system as the FWH-650, which has already been maturely applied in complex environments such as plateaus, islands, and deserts, and is characterized by maturity and stability.
• Operational efficiency
• Heavy payload, high speed, and long endurance, meeting the requirements for heavy payload, high efficiency, and long-duration operations;
• Precision-guided navigation
• High stability and control precision, high autonomy, supporting autonomous takeoff and landing, apex hovering, and emergency return;
• High-altitude adaptability
• Excellent plateau performance, capable of high-altitude takeoff and landing, strong wind resistance, and strong scalability;
• Wide-ranging applications
• Widely applicable, commonly used in emergency rescue, forest firefighting，cargo delivery and offshore rescue etc.
Specification
| Length | 5.4m | Max Flight Speed | 160km/h |
| Width | 1.6m | Max Takeoff & Landing Altitude | 5000m |
| Height | 2.4m | Service Ceiling | 6000m |
| MTOW | 1200kg | Endurance | 6h |
| Max Payload | 500kg | Wind Resistance | Level 6 (takeoff & landing), Level 7 (in flight) |
| Cruise Speed | (100-120)km/h | Rain Resistance | Medium Rain |
