Unmanned Helicopter
FWH-1500

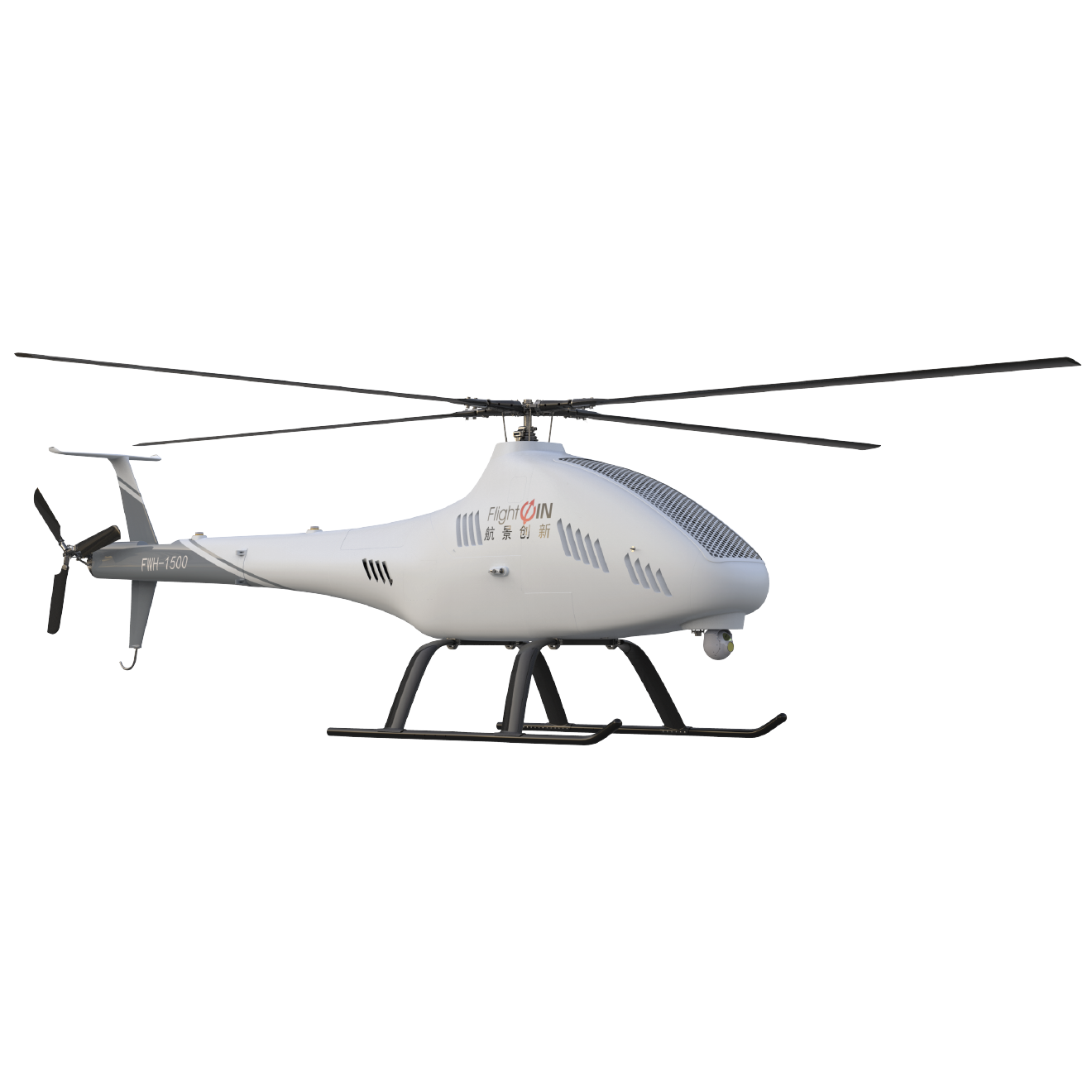

FWH-1500 unmanned helicopter is a 1000kg-class single-rotor unmanned helicopter with tail rotor. It
uses
plateau pressurized aero engine, and has high altitude, large payload capacity, long endurance, and
fast
flight speed characteristics. It adopts redundant flight control, navigation and TT&C system, and
can be
used in the plateaus, mountainous area, forests, and deserts to carry out forest firefighting, cargo
delivery, emergency communication, medical rescue, and disaster search & rescue tasks.
• Load capacity
• Heavy payload, high speed, and long endurance, capable of precise hovering operations as well as long-range heavy-lift transport;
• Collapsible structure
• The tail boom is foldable, making it easy to transport, combining the advantages of heavy payload and compact size;
• AI-driven automation
• High level of intelligence, capable of autonomous takeoff and landing, and route flight; core components are highly redundant, with strong safety performance;
• Wide-ranging applications

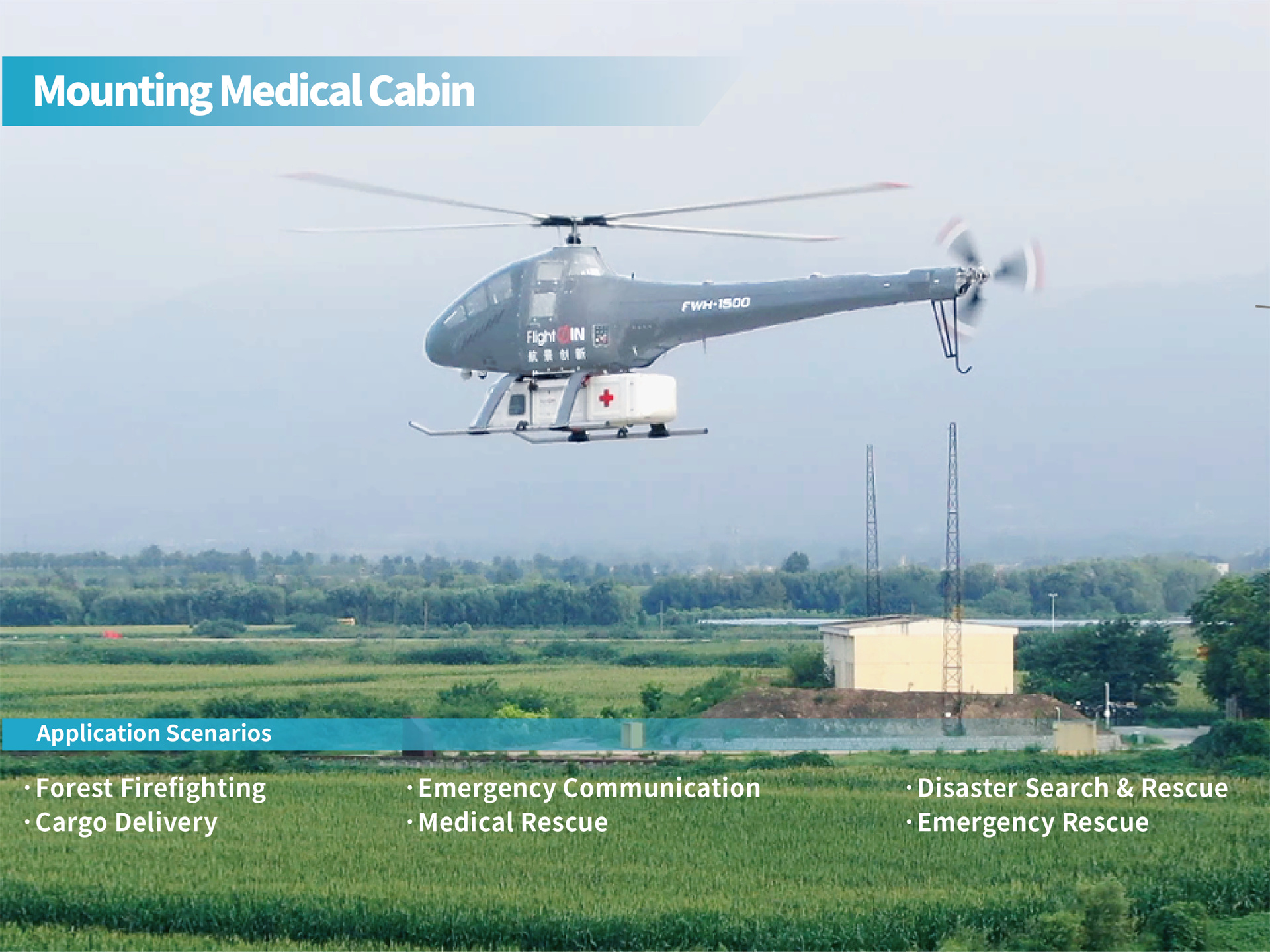

• Widely applicable, commonly used in forest firefighting, cargo delivery, emergency communication and medical rescue etc.
Specification
| Length | 7.2m | Max Flight Speed | 190km/h |
| Width | 1.8m | Max Takeoff & Landing Altitude | 5300m |
| Height | 2.2m | Service Ceiling | 6500m |
| MTOW | 1000kg | Endurance | 5h |
| Max Payload | 300kg | Wind Resistance | Level 6 (takeoff & landing), Level 7 (in flight) |
| Cruise Speed | (120-140)km/h | Rain Resistance | Medium Rain |
