Unmanned Helicopter
FWH-3000
FWH-3000 unmanned helicopter is a 2500kg-class tandem twin-rotor unmanned helicopter with a maximum
payload of 1000kg. The cargo cabin space is 4.2m³, which supports the transportation of 2 sets of
500kg standard pallets or, in case of emergency, 6 wounded and sick people. The belly is equipped
with a hanging and an electric winch mounting interface, to realize the lifting and transfer of
large-size cargo. It can perform tasks such as cargo delivery, medical rescue, forest firefighting and
national defense applications in plateaus, mountainous areas,forests, and deserts etc.
• Load capacity
• Strong payload capacity, wide center-of-gravity range, outstanding flight safety and reliability;
• Suspension-ready design
• Supports cargo bay and external sling, meeting the needs of standard pallet transport inside the bay and oversized cargo transport via external mounting;
• AI-driven automation
• Capable of intelligent flight missions such as autonomous takeoff and landing, autonomous route flight, fixed-point hovering, and precise delivery;
• Wide-ranging applications
• Widely applicable, commonly used in logistics transportation, emergency rescue, casualty evacuation, and island cargo delivery etc.
Specification
| Length | 6.5m | Max Flight Speed | 180km/h |
| Width | 2.2m | Max Takeoff & Landing Altitude | 5000m |
| Height | 2.5m | Service Ceiling | 6500m |
| MTOW | 2300kg | Endurance | 5h |
| Max Payload | 1000kg | Wind Resistance | Level 6 (takeoff & landing), Level 7 (in flight) |
| Cruise Speed | (120-140)km/h | Rain Resistance | Medium Rain |

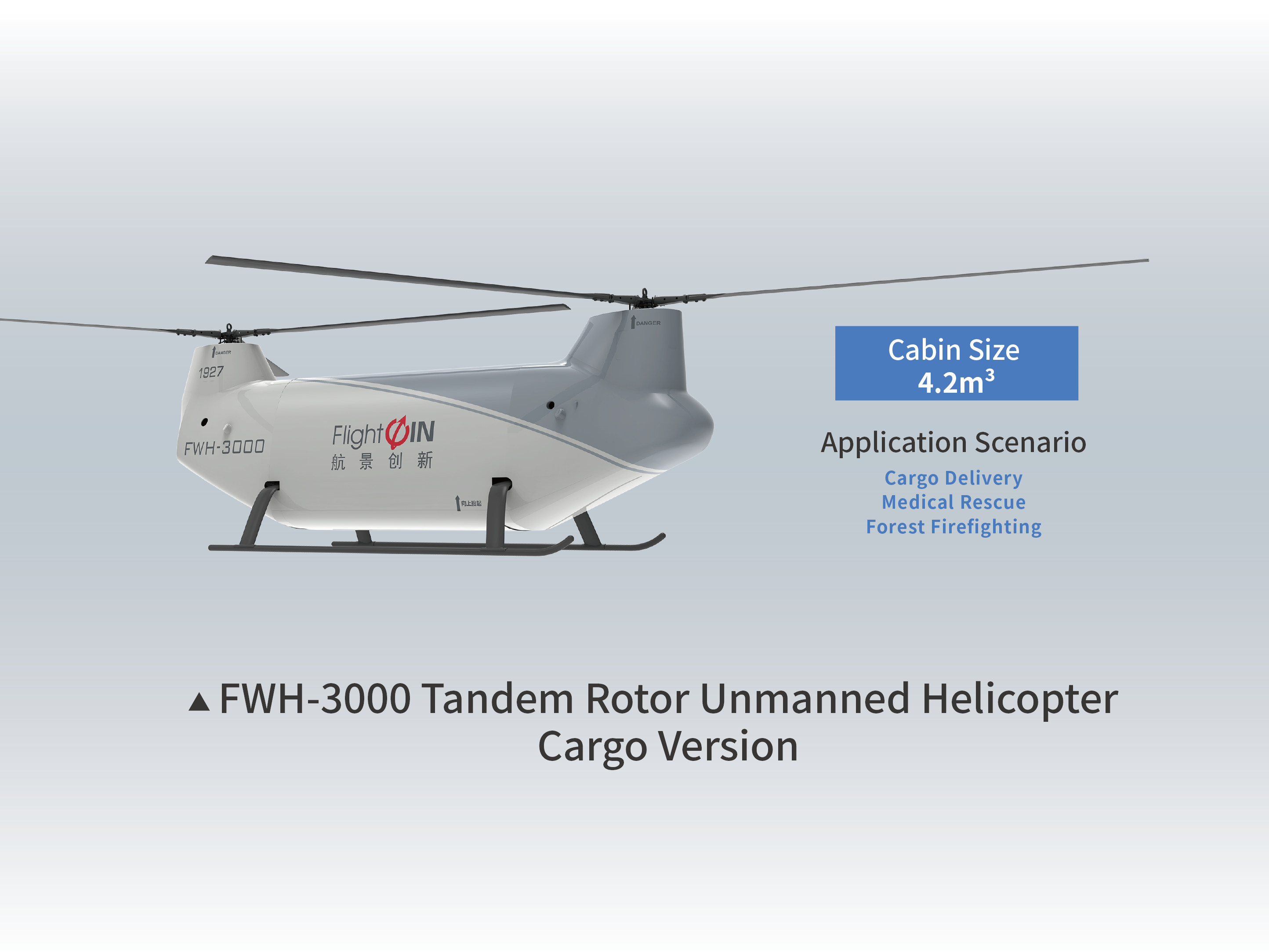

Cargo version

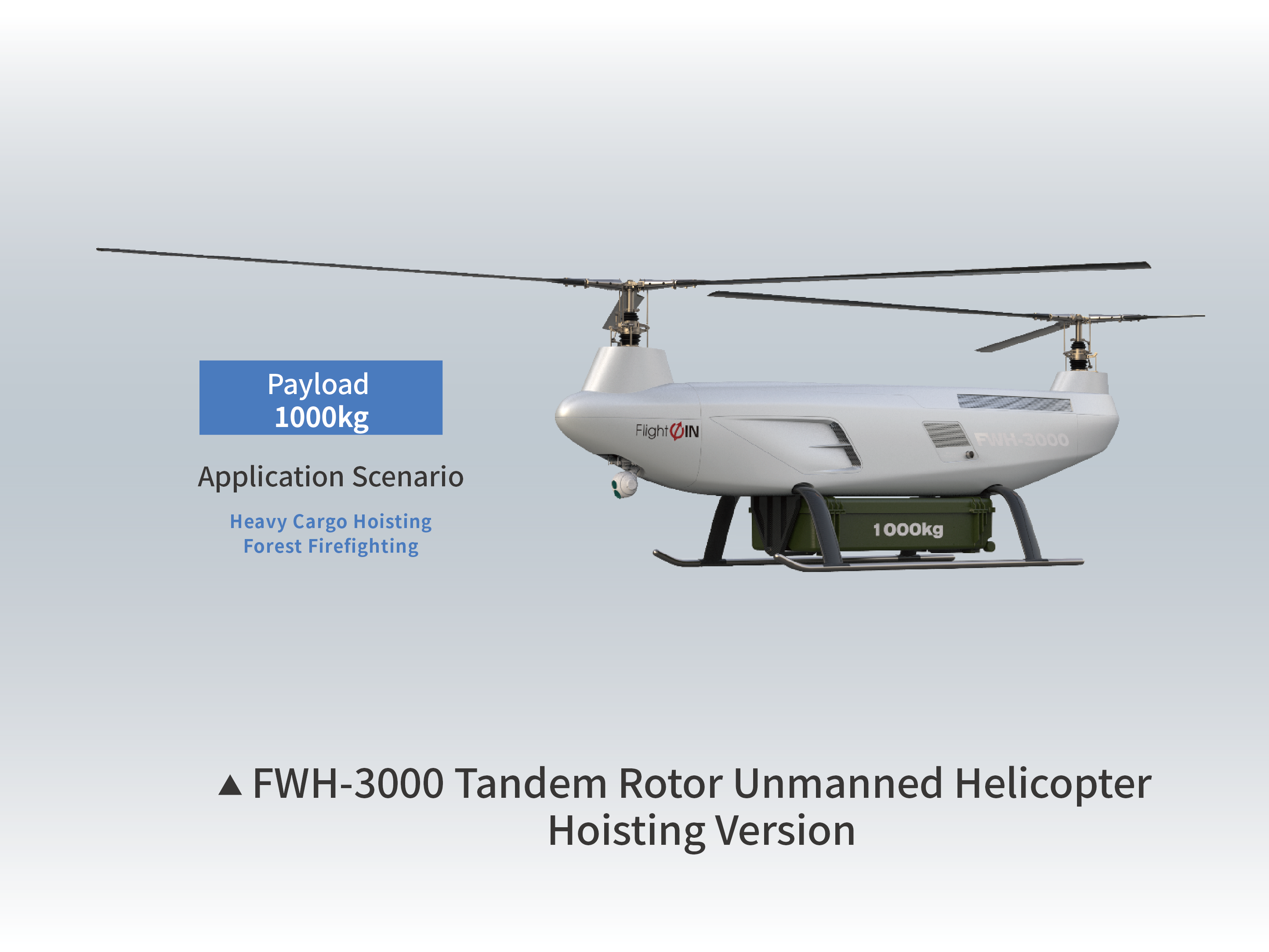

Hoisting Version
