Unmanned Helicopter

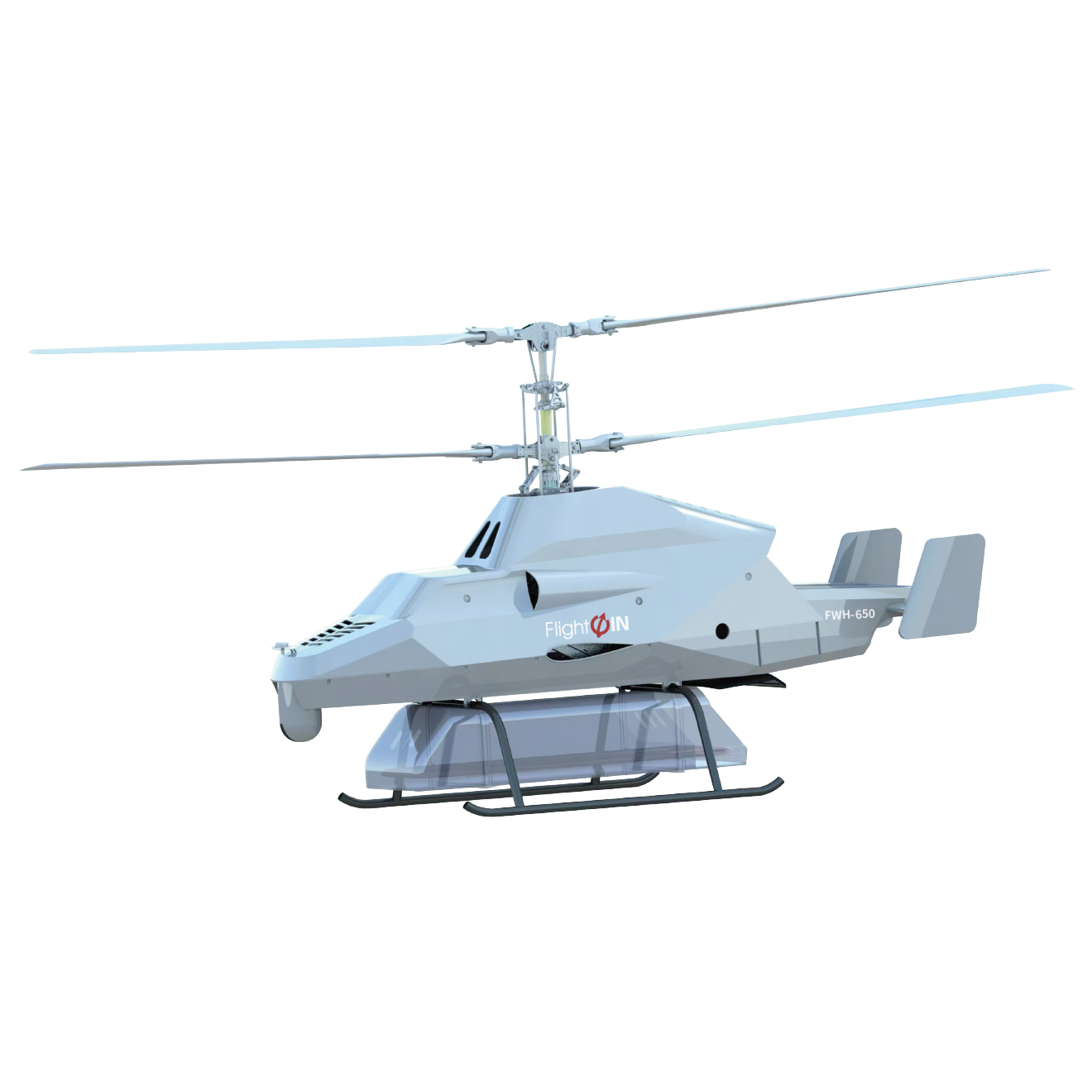

FWH-650

The FWH-650 is a 700kg-class large coaxial twin-rotor helicopter. This model adopts a coaxial twin-rotor design with compact structure and large payload ratio. It uses a plateau-pressurized aviation engine, solving the problem of excessive power loss of the engine during high-altitude flight, with a service ceiling reaching 6500 meters.The FWH-650 flight control system adopts an intelligent robust control algorithm, capable of handling gusts, high and low temperatures, load changes, and center-of-gravity shifts, enabling stable flight in complex environments.

• Operational agility

• High stability and strong maneuverability, capable of navigating through complex terrain and confined spaces;

• Long-endurance battery life

• Compact structure, combining the advantages of heavy payload and small size, conducive to transportation and long-duration heavy-lift flights;

• Precision-guided navigation

• High control precision and stable flight, capable of precise material delivery or hoisting;

• Wide-ranging applications

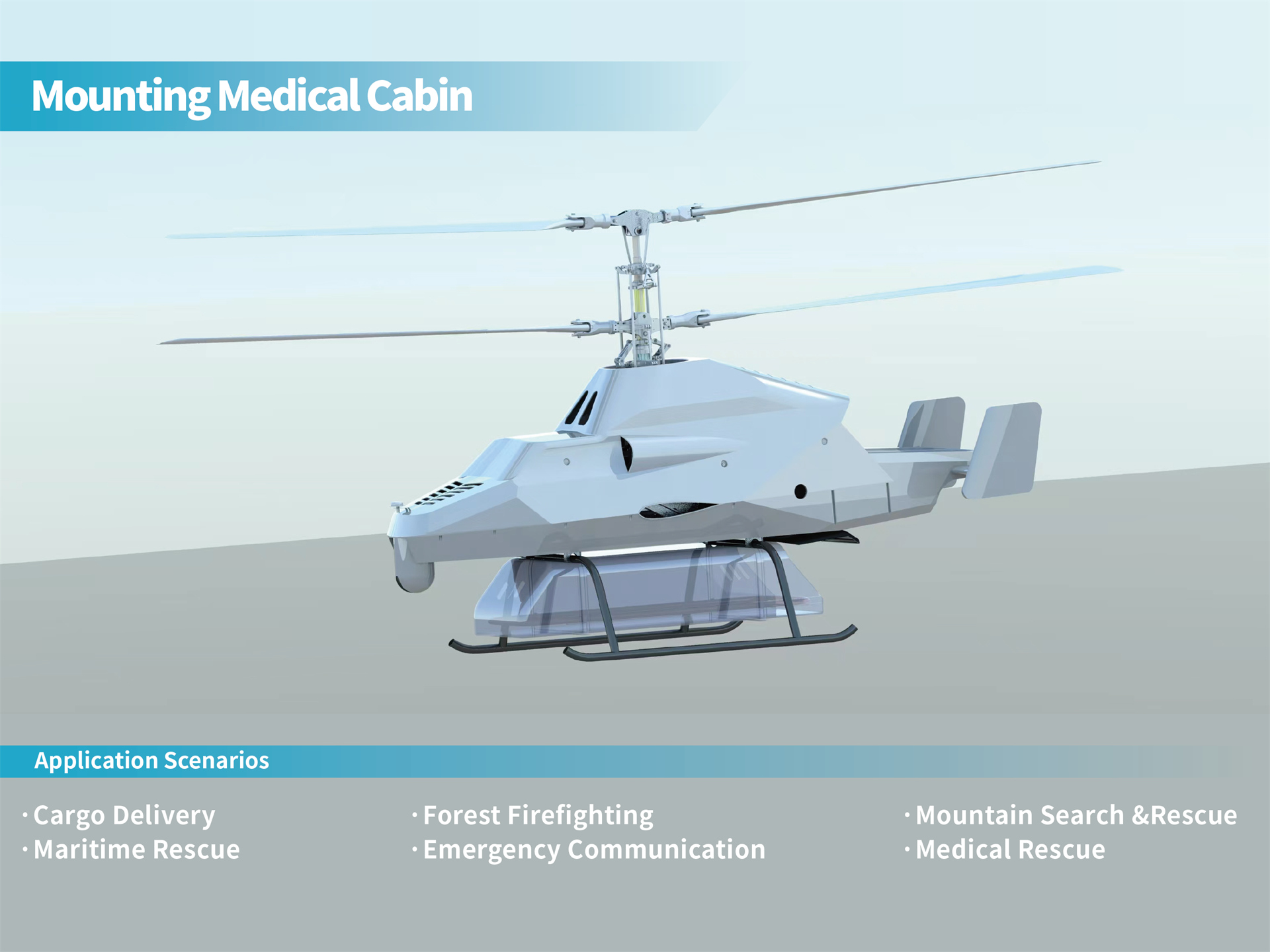

• Widely applicable, commonly used in large-area inspection and patrol, cargo delivery, mountain search and rescue, and offshore rescue etc.

Specification

Length 4.2m Max Flight Speed 160km/h
Width 1.6m Max Takeoff & Landing Altitude 5300m
Height 2.2m Service Ceiling 6500m
MTOW 700kg Endurance 3h
Max Payload 200kg Wind Resistance Level 6 (takeoff & landing), Level 7 (in flight)
Cruise Speed (100-120)km/h Rain Resistance Medium Rain
